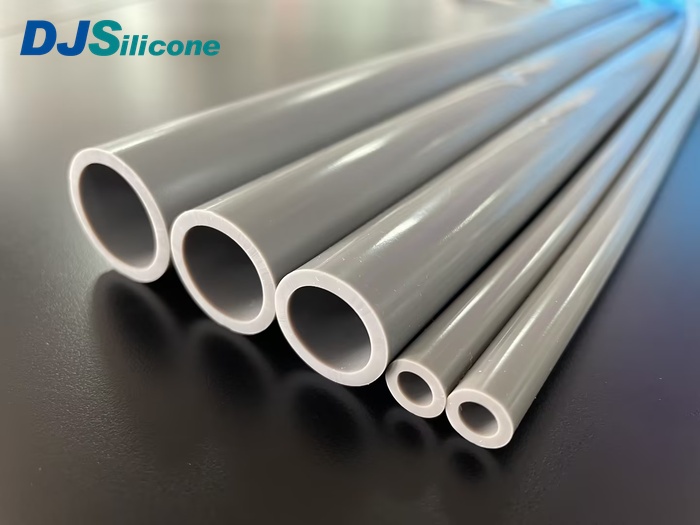

Product Description: Silicone rubber for cable accessories
● Platinum extrusion molding hot vulcanized silicone rubber, excellent extrusion properties, excellent mechanical properties, excellent heat resistance.
Main Applications:
● Extruded tubing for high-performance wire and cable materials, sleeves, etc.
Typical Data:
|
Properties |
Product Data |
|||
|
NE-941DL |
NE-942DL |
|||
|
Appearance |
Transparent, no extraneous matter. |
Light yellow, no extraneous matter. |
Visual Inspection |
|
|
Density, g/cm3 |
1.12-1.13 |
|||
|
Curing |
Hardness, Shore A |
39-42 |
ASTM D2240 |
|
|
Tensile Strength, MPa, ≥ |
10.0 |
|||
|
Elongation at Break, %, ≥ |
750 |
|||
|
Tension Set, %, ≤ |
7 |
|||
|
Tear Strength, Die C kN/m, ≥ |
38 |
ASTM D624 |
||
|
Post- curing |
Hardness, Shore A |
42-46 |
ASTM D2240 |
|
|
Tensile Strength, MPa, ≥ |
10.0 |
ASTM D412 |
||
|
Elongation at Break, %, ≥ |
700 |
|||
|
Tension Set, %, ≤ |
6 |
|||
|
Tear Strength, Die C kN/m, ≥ |
35 |
ASTM D624 |
||
|
Volume Resistivity, Ω ▪cm, ≥ |
1.0×1015 |
|||
|
Dielectric Strength, kV/mm, ≥ |
25 |
|||
|
Rebound Resilience, %, ≥ |
53 |
/ |
||
● Physical data in the above table is for reference only.
● Vulcanization condition: 120℃*5Min.
● Ratio for platinum vulcanizing agent addition：A：0.3%-0.4%，B：0.4%-0.5%.
●Post-curing condition:200℃* 2h
●The supplied test report is obtained by the Quality Inspection Department with the curing conditions and testing method of the company; due to the difference of curing conditions and testing method, we can’t guarantee that both parties obtain the same testing result, and we suggest that users should use the test data obtained under their own testing conditions as the reference for service performance. All the above performance data and application recommendations are only a reference for use on the service performance of product, instead of a guarantee on the effectiveness or general applicability of our products under a certain application.
