Product Description: FLAME RETARDANT SILICONE RUBBER
● Good physical, mechanical and electrical properties ● Superior flame retardancy and self-extinguishing property
● The flame retardancy of 3mm test piece can reach the class V-0 stated in the national standard IEC 60695-11-10
● Complies with the requirements of ROHS
Applications:
●They are applicable to manufacturing of electronic and electric products with flame retardant and insulativity, such as flame retardant gaskets, flame retardant seal rings and wire sheaths for cold cathode fluorescent lamps.
Transportation, safety and storage precautions:
●The product should be kept away from rain and sunshine, away from fire and heat sources, stored at room temperature, not in contact with air, and avoid contact with strong acid, strong alkali, metallic lead and its compounds. Avoid contact with organic compounds containing N, P, S and organotin catalysts. Packaging requires sealing, careful loading and unloading during handling to prevent damage to packaging and containers.
●Except for NE-Z5 series, other series cannot be added to a variety of silicone materials containing hydrogen silicone oil as an anti-yellowing agent special vulcanizing agent, otherwise the rubber material will appear hardening, refining is not shaped, pitting, gel and other self-sulfurization phenomena.

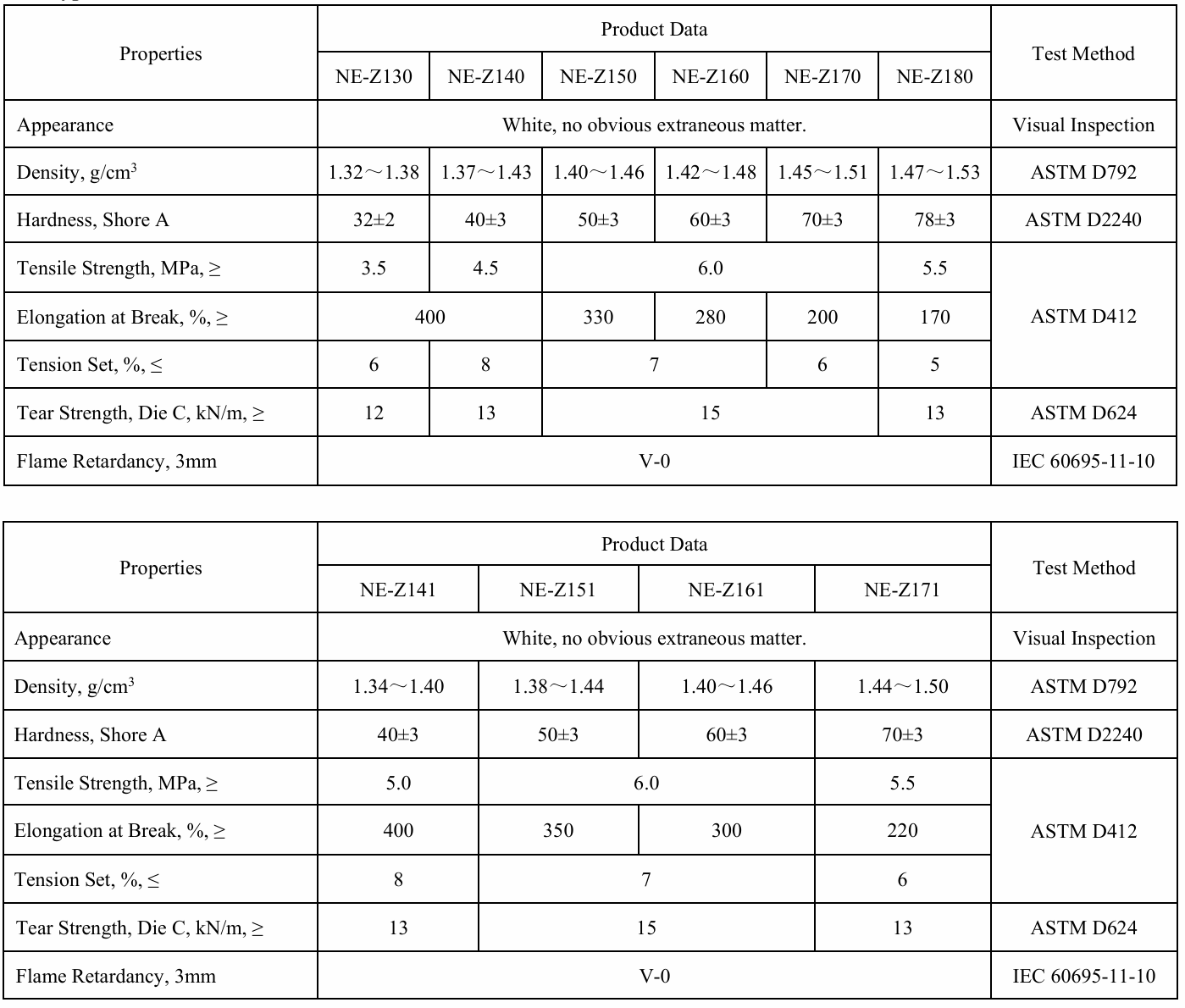

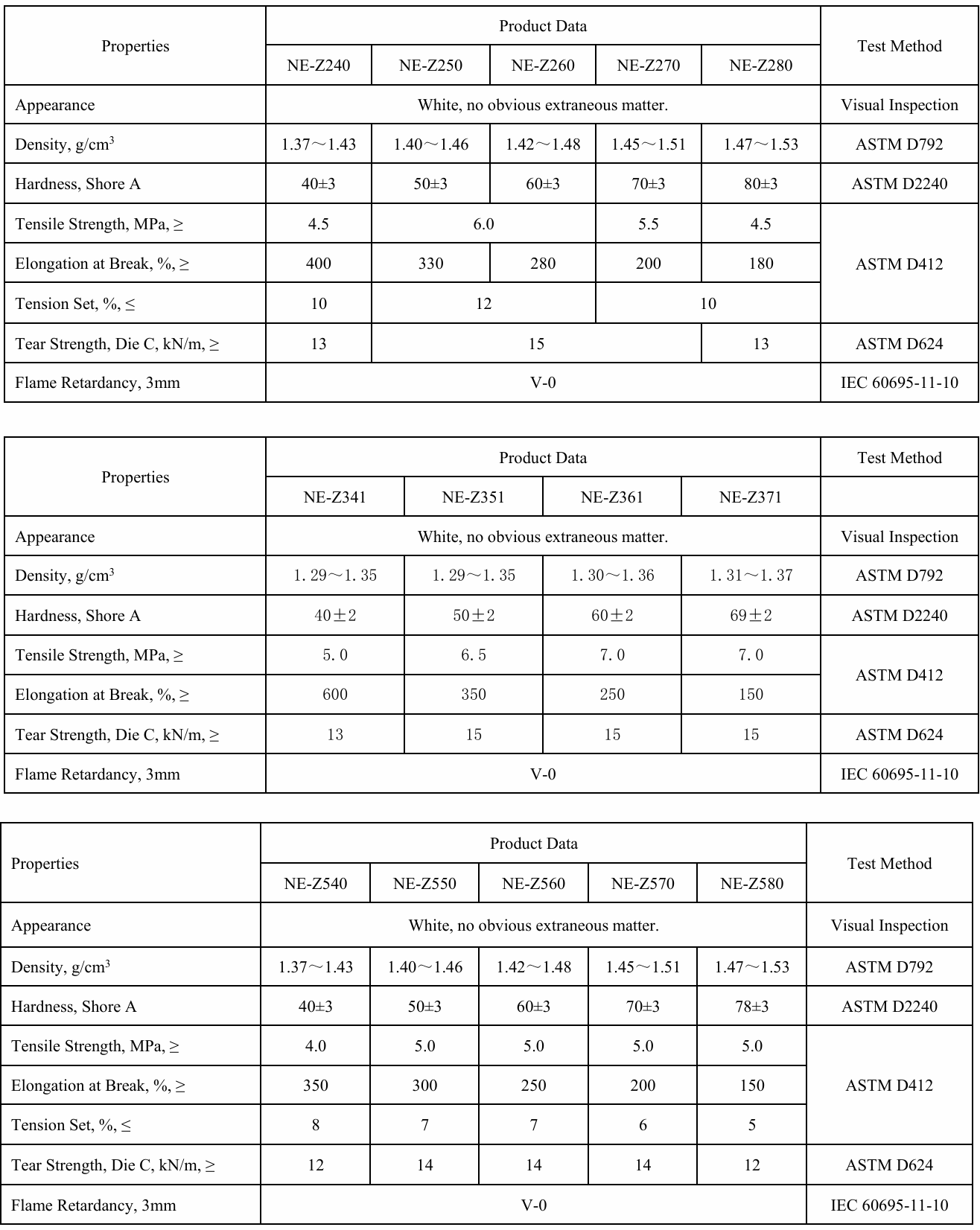

Typical Data：
● Physical data in the above table is for reference only.
● Vulcanization condition: 175℃* 5Min.
● Ratio of curing agent liquid 2,5-Dimethyl-2,5-di(tert-butylperoxy) hexane: 1.0%.
●The supplied test report is obtained by the Quality Inspection Department with the curing conditions and testing method of the company; due to the difference of curing conditions and testing method, we can’t guarantee that both parties obtain the same testing result, and we suggest that users should use the test data obtained under their own testing conditions as the reference for service performance. All the above performance data and application recommendations are only a reference for use on the service performance of product, instead of a guarantee on the effectiveness or general applicability of our products under a certain application.
