Main features:
● Two-components, 1:1 mixing ratio;
● Excellent dissociation;
● Rapid thermal curing;
● Excellent mechanical properties;
● Meet the requirements of BfR, FDA and ROHS.
Applications:

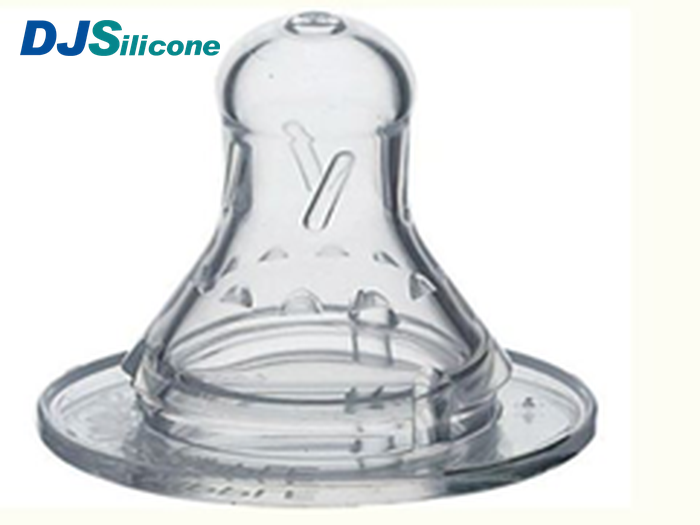

●Baby care;
●Food contact;
●Gasket ring;
●Other injection products.
Typical Data：
|
Properties |
Product Data |
||||||||||
|
DJ-2321 |
DJ-2331 |
DJ-2341 |
DJ-2351 |
DJ-2361 |
DJ-2371 |
||||||
|
Mixing ratio(A:B) |
1:1 |
||||||||||
|
Before- vulcanization |
A Appearance |
Viscous liquid |
Visual Inspection |
||||||||
|
B Appearance |
Viscous liquid |
Visual Inspection |
|||||||||
|
A Viscosity(25℃), mPa•s (10S-1) |
180000-230000 |
200000-300000 |
220000-400000 |
ISO 3219 |
|||||||
|
B Viscosity (25℃), mPa•s (10S-1) |
180000-230000 |
200000-300000 |
220000-400000 |
ISO 3219 |
|||||||
|
After- vulcanization |
Appearance |
Transparent, no extraneous matter |
Visual Inspection |
||||||||
|
Density, g/cm3 |
1.100- 1.140 |
1.100- 1.140 |
1.100- 1.140 |
1.100- 1.140 |
1.100- 1.150 |
1.100- 1.150 |
|||||
|
Hardness, Shore A |
20-25 |
30±2 |
40±2 |
50±2 |
60±2 |
68±2 |
ASTM D2240 |
||||
|
Tensile Strength, MPa ≥ |
6.0 |
6.0 |
7.0 |
7.0 |
7.0 |
7.0 |
ASTM D412 |
||||
|
Elongation at Break, % ≥ |
600 |
550 |
500 |
450 |
350 |
300 |
ASTM D412 |
||||
|
Tear Strength, kN/m ≥ |
20 |
20 |
20 |
30 |
30 |
30 |
ASTM D624 |
||||
● Physical data in the above table is for reference only.
● Vulcanization condition: 125℃*10Min.
●The supplied test report is obtained by the Quality Inspection Department with the curing conditions and testing method of the company; due to the difference of curing conditions and testing method, we can’t guarantee that both parties obtain the same testing result, and we suggest that users should use the test data obtained under their own testing conditions as the reference for service performance. All the above performance data and application recommendations are only a reference for use on the service performance of product, instead of a guarantee on the effectiveness or general applicability of our products under a certain application.
Related material download:
食品级注射成型Food-grade injection molding liquid silicone rubber-DJ-23X1 Series TDS
